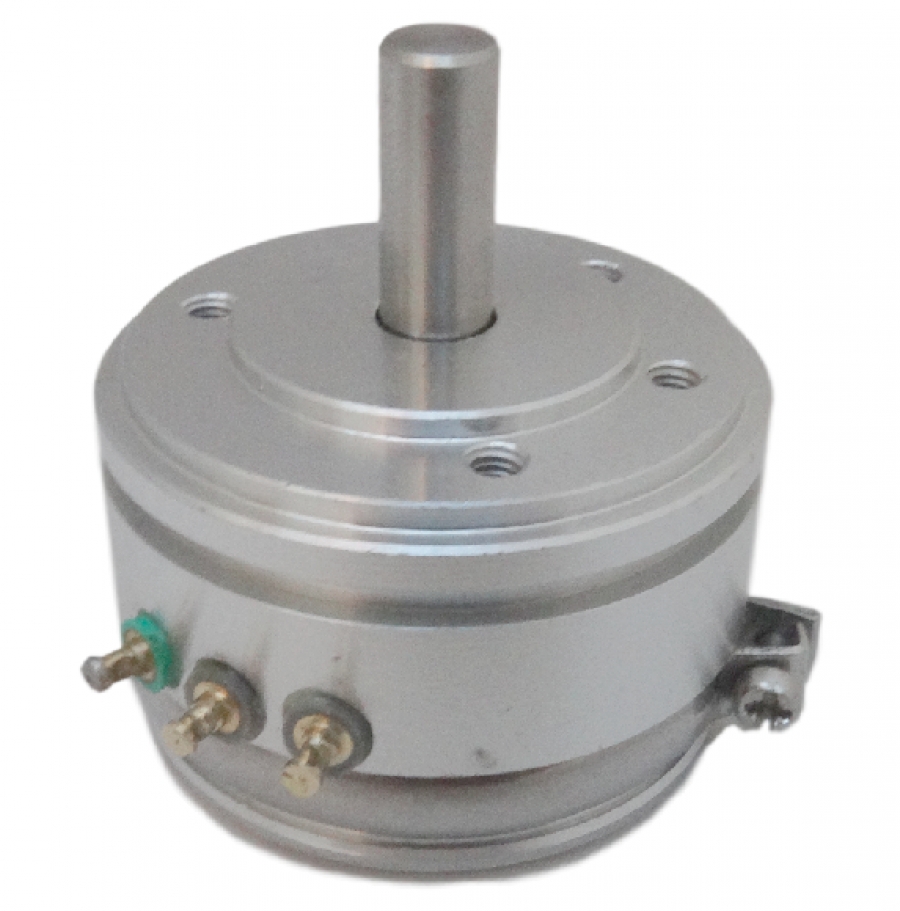

PPS36 series

PPS36 series

The servomount PPS36 potentiometers have a very long lifetime. Thanks to a precious metal wiper and ball bearings, the PPS36 provides efficiency and reliability. Thanks to tight linearity tolerances, this robust rotative sensor is widely used in machine building industry.



  • Ohmic values : 1 kΩ, 5 kΩ, 10 kΩ
  • Electrical travel : 345° ± 3°
  • Mechanical travel : 360°
  • Standard tolerance : ± 15 %
  • Standard linearity : ± 0.1 %
  • Power rating : 2 W
  • Bearing : 2 ball bearings
  • Housing diameter x length : 36 x 39.5 mm
  • Shaft diameter : 6 mm
  • Lifetime : 30 x106 rotations



Shortform PPS36 (EN)
