PPS22 series

PPS22 series

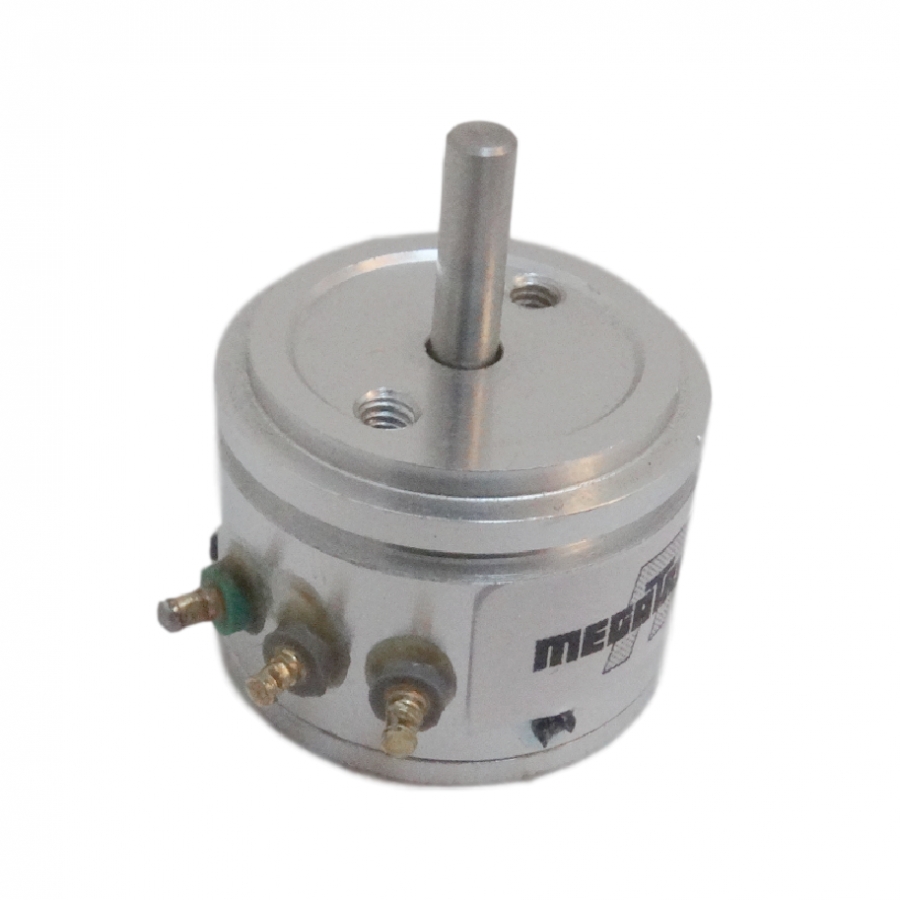

The PPS22 is a single-turn plastic track potentiometer Ø22 without stops with a servo bracket, two-ball bearing guide, infinite resolution and a Ø3 stainless steel shaft. It is intended for applications of servo-control or angular measurement.





  • Ohmic values : 1 kΩ, 5 kΩ
  • Electrical travel : 320° ±4
  • Mechanical travel : 360°
  • Standard tolerance : ±15 %
  • Standard linearity : ±0.5 %
  • Power rating : 1 W
  • Fixing method : servo
  • Bearing : ball bearings
  • Housing diameter x length : 22 x 15.2 mm
  • Shaft diameter : 3 mm
  • Lifetime : 20 x106 rotations



Shortform PPS22 (En)
