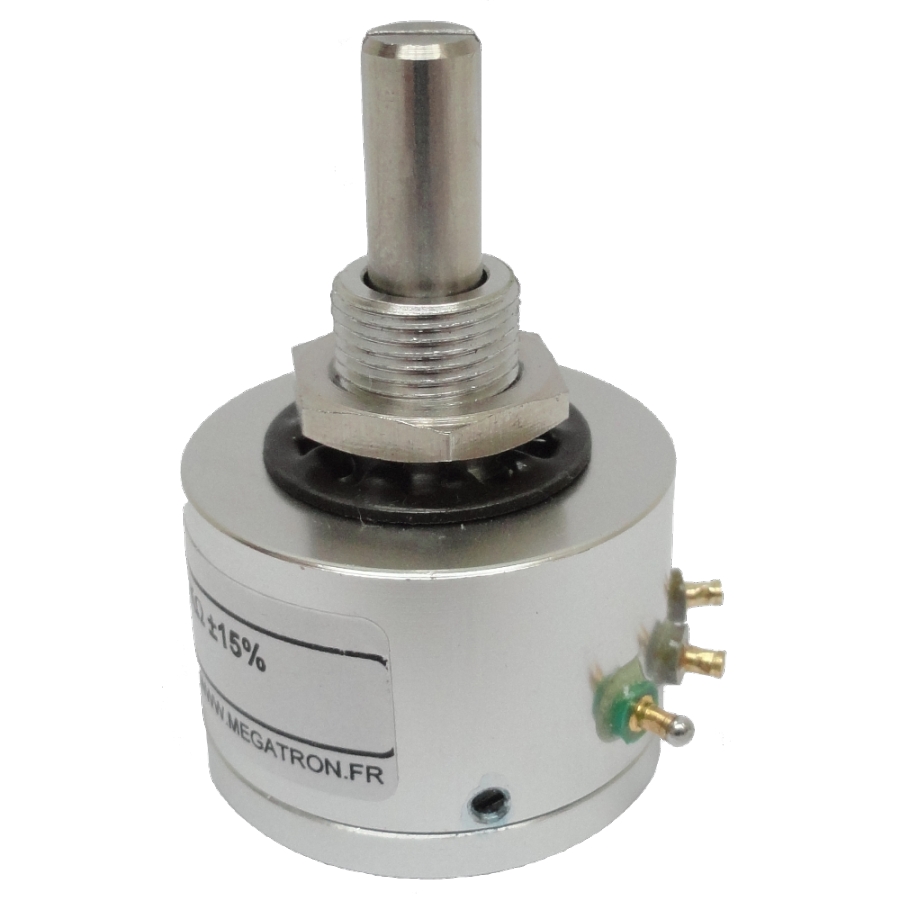

PPC27 single turn potentiometer

PPC27 single turn potentiometer

The PPC27 potentiometers with bushing mount are available with tandem option, with or without rear shaft. The movement is really soft thanks to ball bearings. Electrical or mechanical modifications are possible for big quantities.







  • Ohmic values : 1 kΩ, 5 kΩ, 10 kΩ
  • Electrical travel : 320°
  • Mechanical travel : 360°
  • Standard tolerance : ±15 %
  • Standard linearity : ±0.5 %
  • Power rating : 0.5 W
  • Fixing method : bushing
  • Bearing : ball bearings
  • Housing diameter x length : 27 x 19 mm
  • Shaft diameter : 6 mm
  • Lifetime : 20 x106 rotations



Shortform PPC27 (EN)
