Interpot series 260/262/370/372

Interpot series 260/262/370/372

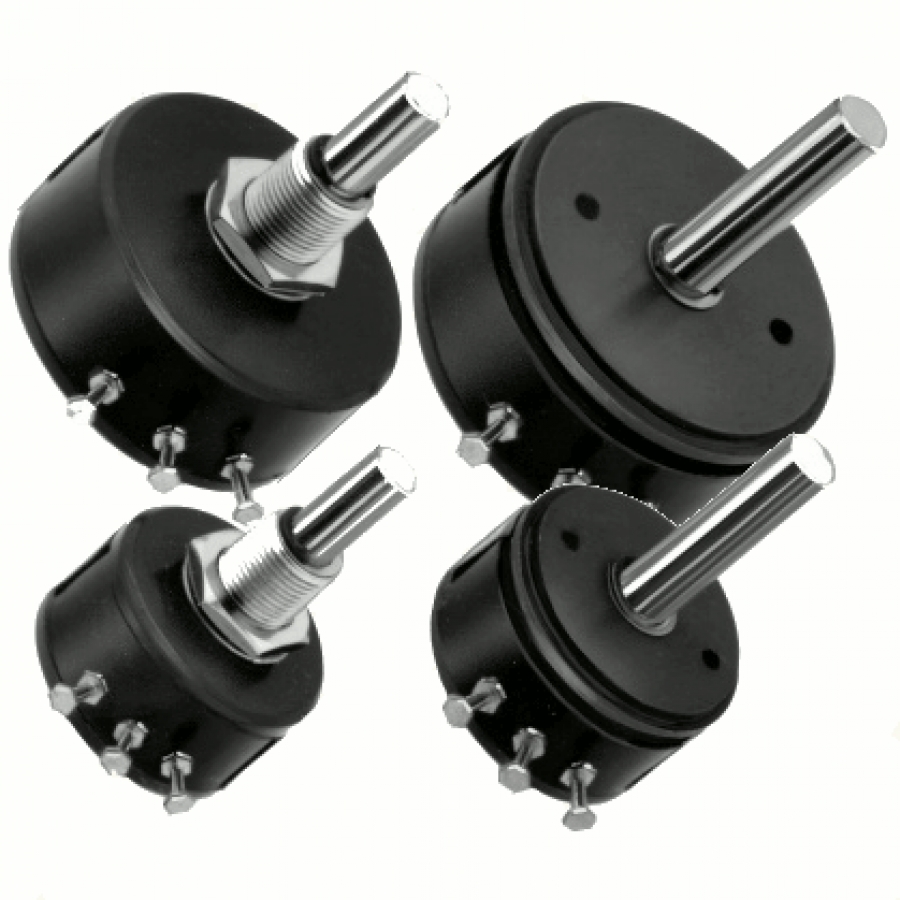

The interpot series contains four wirewound potentiometers : 260, 262, 370, 372. These wirewound potentiometers are suitable for Human Machine Interface or position encoder due to their high resolution coil and robust construction. The servo mount is more designed for mechanical applications where an angle must be converted into an analog value.

Interpot 260  262 370 372
Ohmic value  10 Ω to 20 kΩ  10 Ω to 20 kΩ  10 Ω to 50 kΩ 10 Ω to 50 kΩ
Electrical travel  290° +5  355° +5  290° +5 355° +5
Mechanical travel  300°  360°  300° 360°
Standard tolerance ±5% ±5 % ±5 % ±5 %
Standard linearity ±0.5 % ±0.5 % ±0.5 % ±0.5 %
Power rating 2 W 2 W 3 W 3 W
Fixing method Bushing SERVO Bushing SERVO
Bearing Sleeve bearings Ball bearings Sleeve bearings Ball bearings
Housing diameter x lenght 27 x 15.5 mm 27 x 15.5 mm 36.5 x 15.5 mm 36.5 x 15.5 mm
Shaft diameter 6 mm 6 mm 6 mm 6 mm
Lifetime 1 x106 rotations 3 x106 rotations 1 x106 rotations 3 x106 rotations
