MBI 38

MBI 38

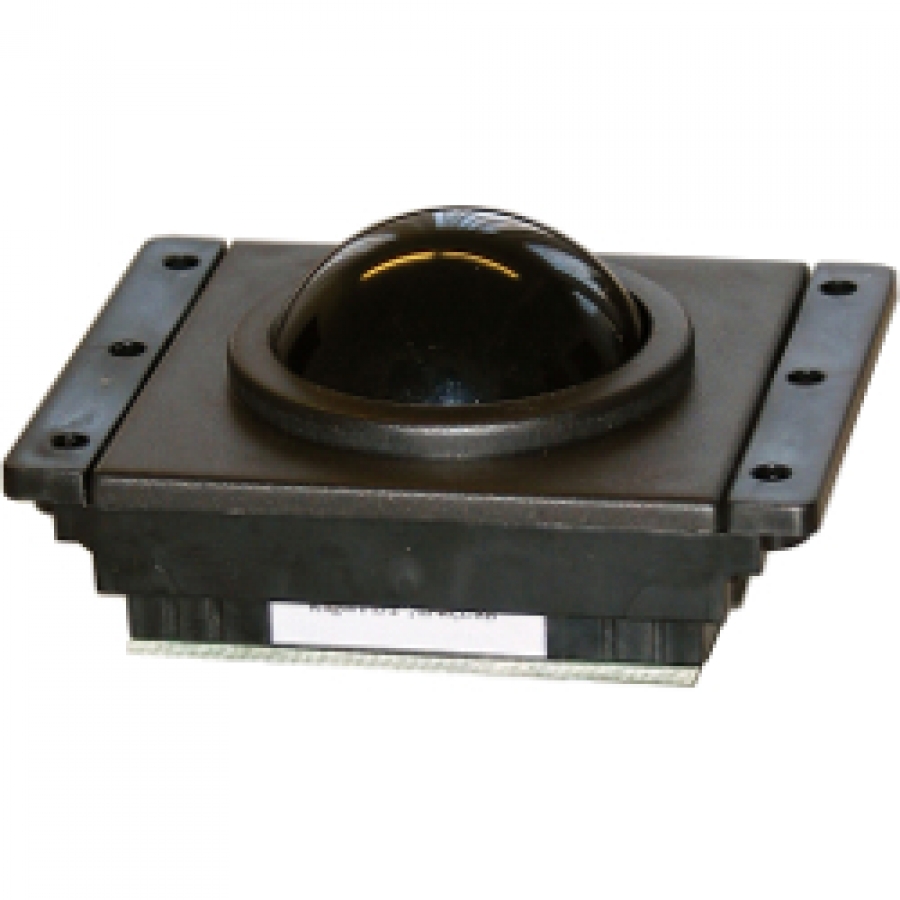

The MBI 38, with its trackball of 38 mm diameter is perfectly suitable for an integration in a small space. It is available with different interfaces, protection class and ball color. The vandal resistant version is equipped by a ball and a support in polished stainless steel.

Application fields : keyboard, desk, console or process control. The vandal resistant version is made for systems in contact with public.

Details

  • Ball of 38 mm de diameter
  • Different ball colors: steel grey, black, ivory, blacklit blue
  • Protection class IP40, optional IP51 or IP65
  • Vandal resistant version in stainless steel
  • Black housing or ball and support in polished stainless steel
  • Lifetime :
    • 10 Mio. movements for IP40
    • 2 Mio. movements for other protection class
  • Possibility to connect 3 external buttons
  • Dimensions in mm : 74 x 57 x ~38
  • Mounting up to 30°
  • Outputs : Quadrature, PS/2-USB, USB, PS/2 or RS232C

Documentation

Shortform MBI 38 (En)
