TRCD Hall effect desktop joystick 2 or 3 axes

font size decrease font size increase font size
Print

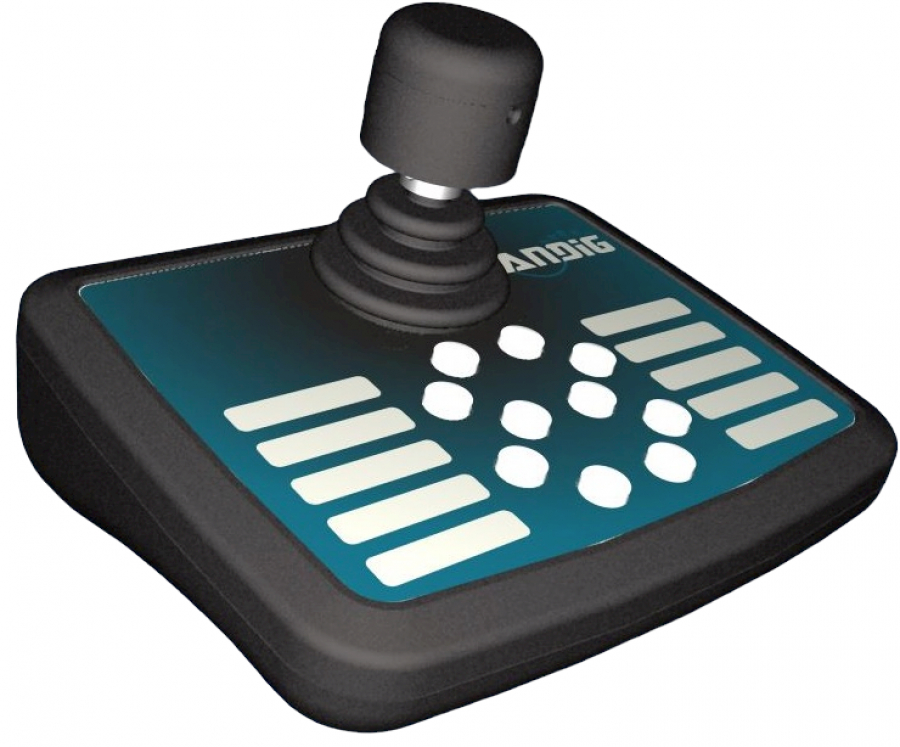

The TRCD joystick is a desktop joystick designed for high-precision applications, particularly those where ergonomics are decisive. The position of the joystick is measured by Hall effect magnetic sensors. This contactless technology ensures almost no mechanical wear. This joystick is fully customizable (faceplate, button, etc...). Do not hesitate to contact us to study any specific customization requirement.

Application fields: CCTV, medical, robotics, automation, console controls...

Specification

IP50 sealing
3 axes
10 buttons keyboard
1 push button on the handle
USB interface
Spring return
Fully customizable (faceplate, button, etc...)

Documentation

Shortform TRCD (UK)

Customizable faceplates

The faceplates can be personalized :

from small quantities
with your logo
with texts of your choice

Press Button

The button is only closed while pressed.

Self-Holding Button

The button changes state each time it is pressed.

Possible configuration of joystick buttons in :

Press button
Self-Holding buttons

Mouse buttons are only Press buttons

Use as Joystick

Up to 3 axes: X, Y, Z
Up to 12 buttons

Use as Mouse

Up to 3 axes: X, Y, Z
Up to 3 buttons: Left, Right, Middle

Possible configuration in :

Joystick only
Mouse only
The two alternately
- with toggle by :
  - a jumper on the board (not taken out)
  - a dedicated button at your choice
- Common devices are assigned to the active interface
  - The axes
  - Up to 3 common buttons
- The other interface receives rest values
- The other buttons are assigned to their interface

Red and White opaque buttons

In Option, Buttons with Blue Leds

Leds offers several possibilities :

Backlight
Reflection of closed joystick buttons
User control via HID command

Dimmable Leds

Bonus :

4 levels of light intensities
